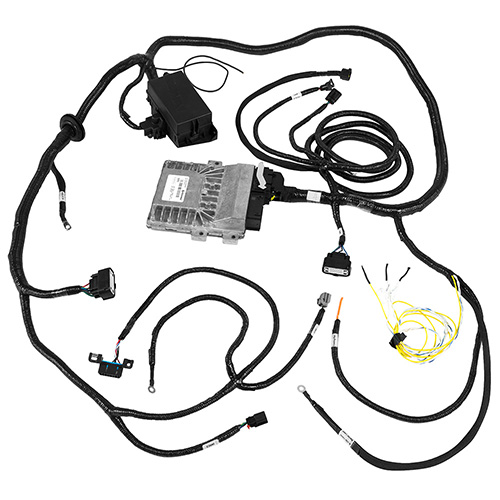

CONTROL PACK - 2015-17 COYOTE 5.0L MANUAL TRANSMISSION

CONTROL PACK - 2015-17 COYOTE 5.0L MANUAL TRANSMISSION
CONTROL PACK - 2015-17 COYOTE 5.0L MANUAL TRANSMISSION
CONTROL PACK - 2015-17 COYOTE 5.0L MANUAL TRANSMISSION
M-6017-504V
Retail
$1,999.00
Sold in Units of
Each (1)
Instruction Sheet
Available (PDF)
Sign in to add to wish list
WARNING:
This part is designed and intended for competition use only or off-highway use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.


  • Take the complexity and mystery out of wiring a late model 5.0L Coyote engine!
  • Designed to run 2015-17 5.0L 4V Mustang Coyote engines, M-6007-M50A , and M-6007-A50NAA 5.0L 4V Ti-VCT crate engines with manual transmission
  • NOTE: Not for use with 2015-2017 F-150 Engines
  • Includes PCM with Ford Performance calibration
  • Includes Electronic Throttle Control accelerator pedal which eliminates throttle cable routing problems
  • Unique control pack harness replaces stock body harness and is designed for custom vehicle builds
  • Features OBD-II diagnostic port to assist in vehicle calibration upload and problem diagnosis
  • Includes power distribution module, air box, air inlet tube, MAF sensor, upper and lower radiator hoses and HEGO sensors
  • PCM with Ford Performance calibration requires return type fuel system, will not work with returnless fuel system
  • For 2011-2014 engines use controls pack M-6017-A504VA
  • For 2015-2017 Automatic transmission version controls pack which works in conjunction with 6R80 transmission use M-6017-M50A
  • NOTES: Supercharged versions and M-6007-A50SCA (lower compression ratio) require custom calibration
  • Installation of this PCM in a 2015-17 Mustang GT will result in a no-start condition
  • Remanufactured PCM

Part Type
Electrical: Microprocessors
Instruction Sheet
Warranty Availability
Not Available
Package Dimensions
14" x 20" x 29"
Package Weight
24.15 lb(s)
UPC Code
756122002278
Country of Origin
United States
