CONTROL PACK 2015-2017 COYOTE 5.0L WITH AUTOMATIC TRANSMISSION
M-6017-M50A
Retail
$2,149.00
Sold in Units of
Each (1)
Instruction Sheet
This part is in your Wish List
This part has been added to your Wish List
WARNING:
This part is designed and intended for competition use only or off-highway use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.
Take the complexity and mystery out of wiring a late model 5.0L Coyote engine!
Designed to run 2015-17 5.0L 4V Ti-VCT Coyote auto transmission engines, with 6R80 Mustang GT 6-speed auto transmission. Manual trans engines require engine harness GU5Z-12A581-EF available from your local Ford Dealer.

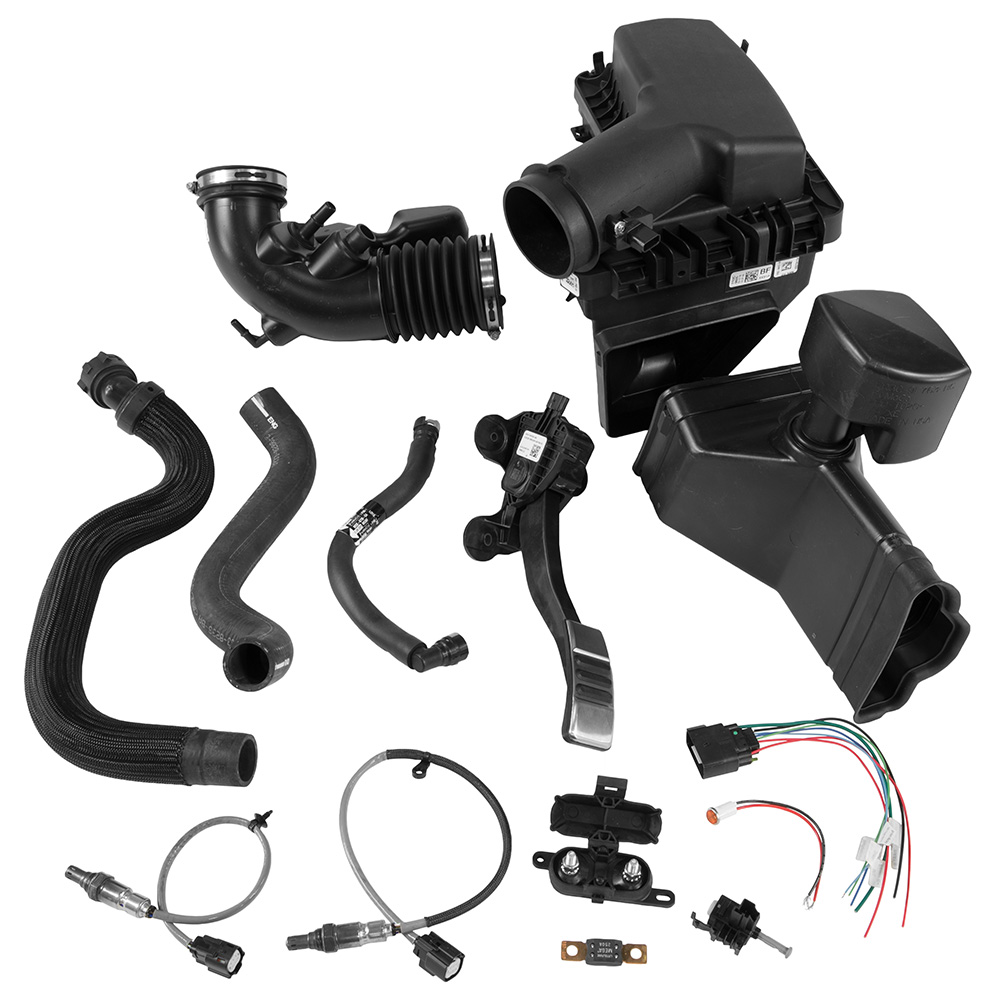

- PCM with Ford Performance calibration
- Electronic Throttle Control accelerator pedal, eliminating throttle cable routing problems
-

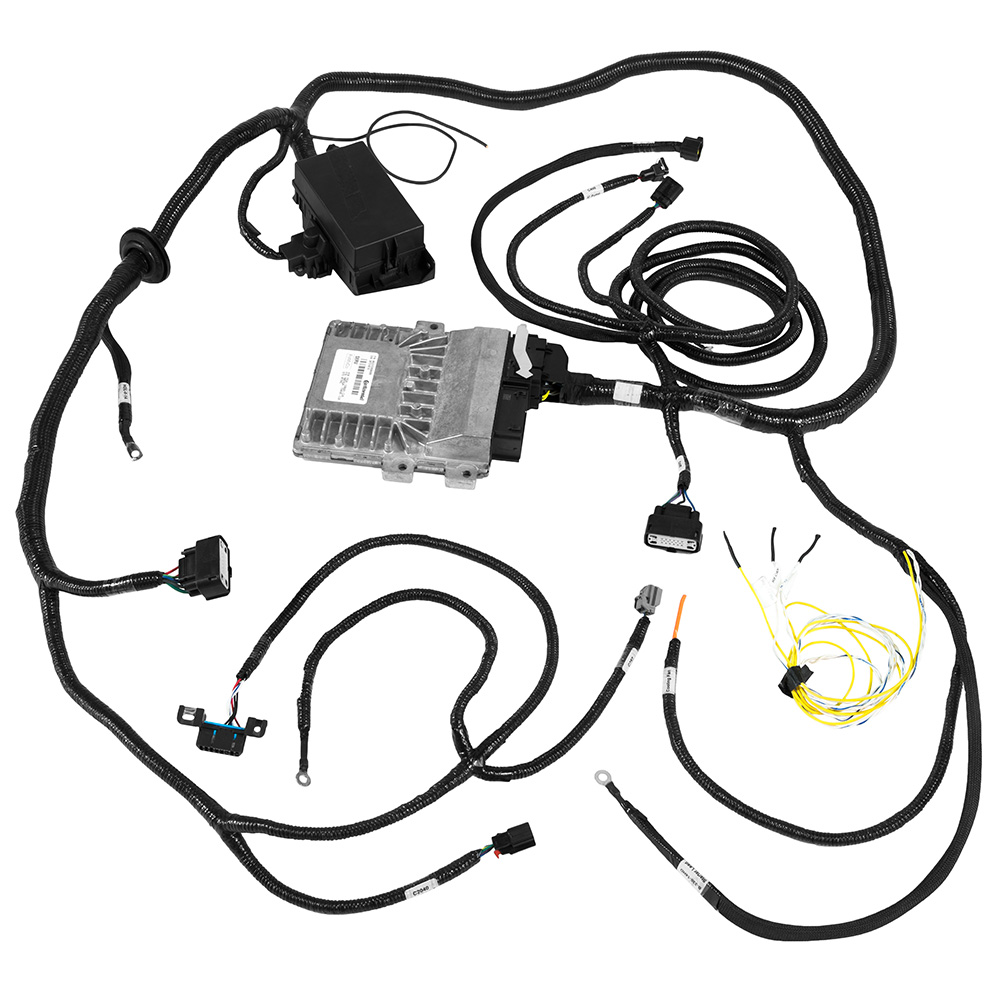

Unique control pack harness, which replaces the stock body harness and is designed for custom vehicle builds
- OBD-II diagnostic port to assist in vehicle calibration upload and problem diagnosis
- Power distribution module
- Air box
- Air inlet tube
- MAF sensor
- Upper and lower radiator hoses
- HEGO sensors
- PCM with Ford Performance calibration requires return type fuel system, will not work with returnless fuel system
-
NOTE: Installation of this PCM in a 2015-17 Mustang GT will result in a no-start condition.
-
NOTE: Not for use with a 2015-2017 F150 5.0L Coyote engine.
Part Type
Electrical: Air Metering
Instruction Sheet
Warranty Availability
Not Available
Package Dimensions
14" x 20" x 29"
Package Weight
24.2 lb(s)
UPC Code
756122005200
Country of Origin
United States
