2015-2017 MUSTANG GT SUPERCHARGER KIT 670 HP

2015-2017 MUSTANG GT SUPERCHARGER KIT 670 HP
2015-2017 MUSTANG GT SUPERCHARGER KIT 670 HP
2015-2017 MUSTANG GT SUPERCHARGER KIT 670 HP
2015-2017 MUSTANG GT SUPERCHARGER KIT 670 HP
2015-2017 MUSTANG GT SUPERCHARGER KIT 670 HP
M-6066-M8627
Retail
$7,100.99
Sold in Units of
Each (1)
Instruction Sheet
Available (PDF)
Sign in to add to wish list
This part has the Fifty State Street Legal icon The “Fifty States Street Legal” icon means that this part has been determined by the California Air Resources Board (CARB) not to have an adverse effect on emissions when installed and used properly in the application(s) identified in the product description. Under EPA and CARB policy, such parts may be installed in vehicles driven on public roads and highways.
Proudly Made in the USA
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.

  • Fits 2015-2017 Mustang GT with manual or automatic transmission
  • 670HP at approximately 9 psi of boost with 93 octane fuel
  • Kit comes complete with all hardware for install
  • Ford Performance calibrations are 50 state legal with CARB EO (D-418-26)
  • Developed with ROUSH Performance
  • Calibration does not support adaptive cruise
  • NOTE: Right Hand Drive (RHD) models require part number M-9066-M8RHD
  • NOTE: All customers who purchased this kit when rated at 627 horsepower, please contact the Ford Performance Tech Line at 800-367-3788 if you have NOT received your calibration upgrade to 670 horsepower

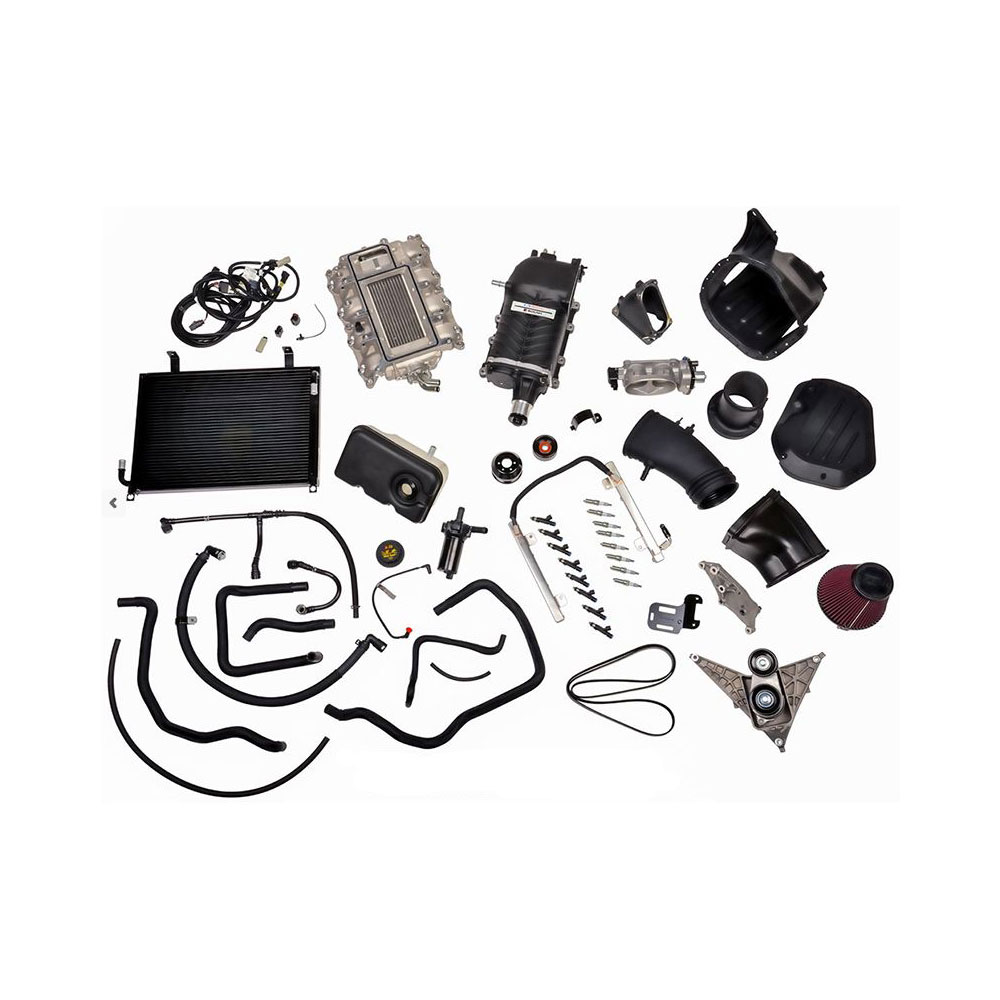

Kit Includes:

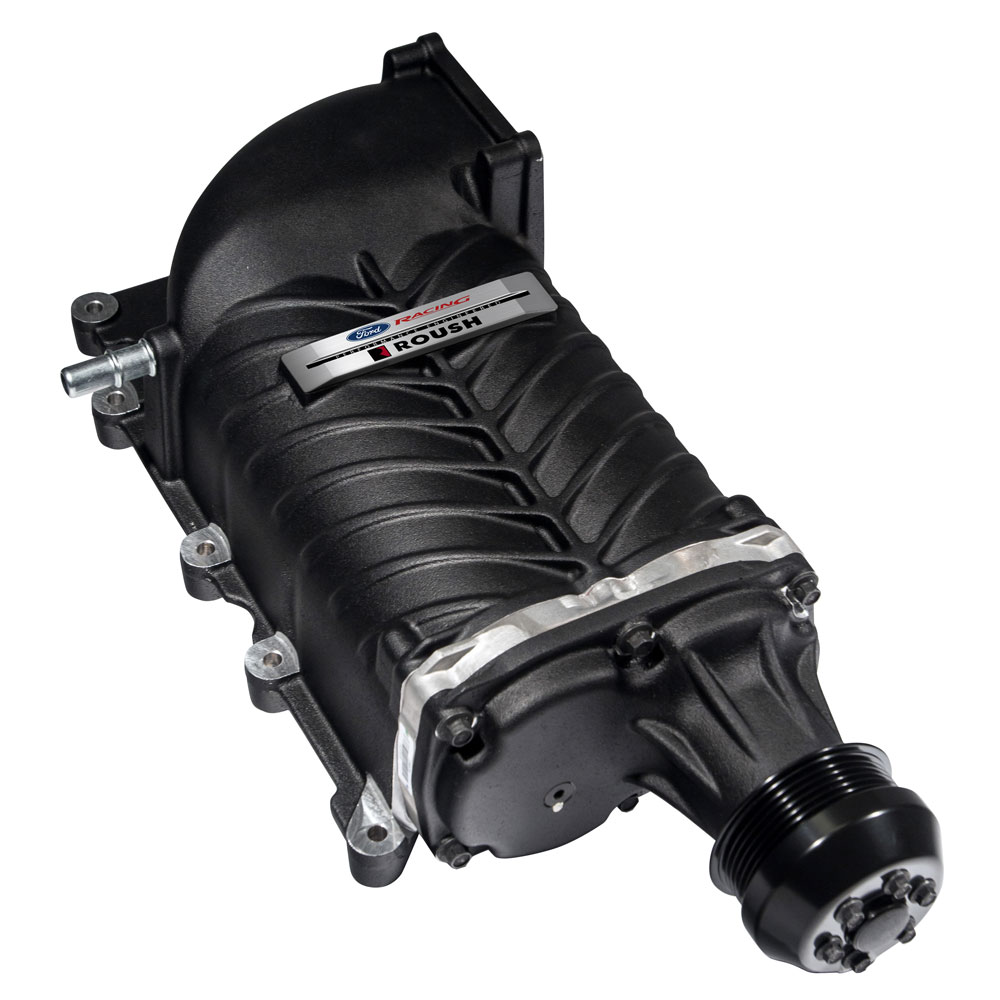

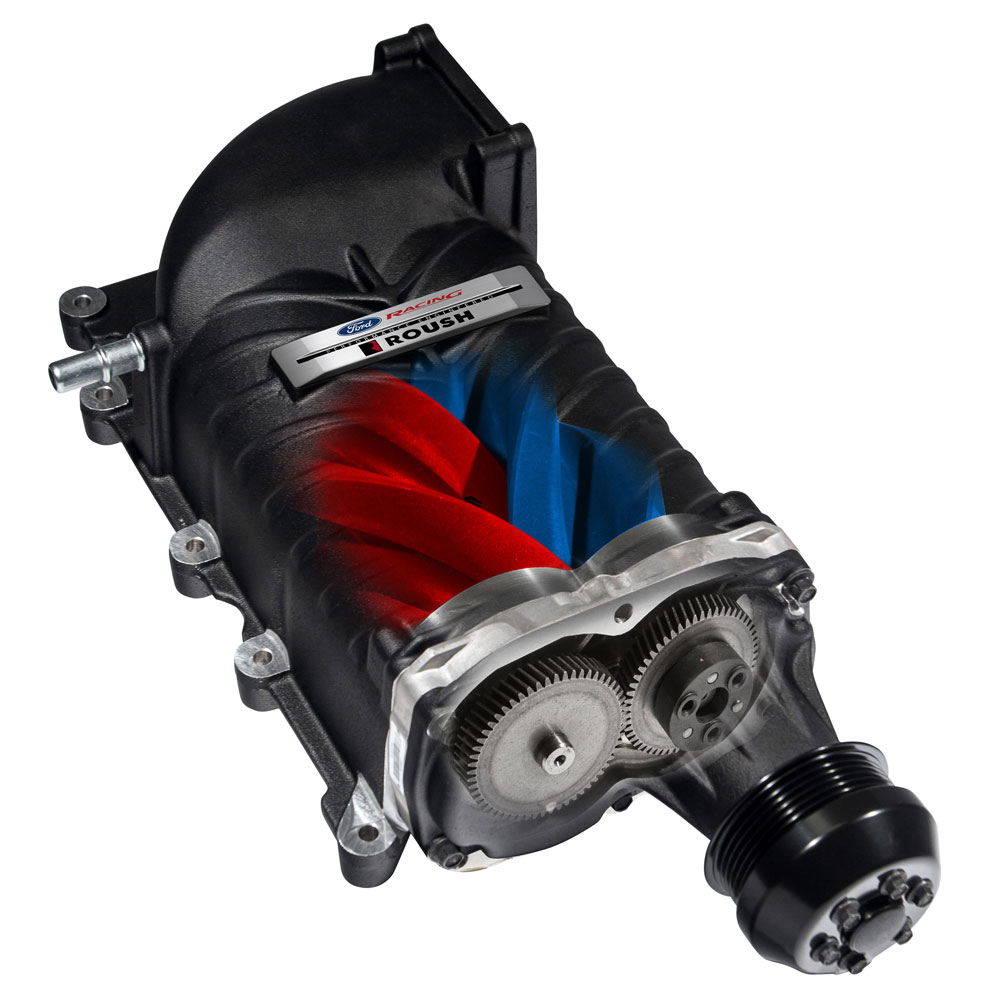

  • 2.3L Twin Vortices (TVS) Supercharger Assembly.   The R2300 Supercharger features new TVS Technology. The new Twin Vortices Series features new four-lobe rotors and high-flow inlet and outlet ports that greatly enhance thermal efficiency, enabling greater volumetric capacity at higher revolutions per minute (RPM)
  • Lower Intake manifold
  • Dual 60mm electronic throttle body
  • Air inlet system
  • Fuel rails
  • Complete air-to-liquid intercooler system includes pump, heat exchanger and reservoir
  • Drive Belt: FEAD 6-rib system
  • 47 lb/hr, 6-hole, high-impedance fuel injectors
  • Ford Performance ProCal 3 tool (requires laptop and internet access) with performance calibration for significantly improved throttle response and performance feel.

    • NOTE: Powertrain calibrations are developed and supported for U.S. and Canadian vehicles only.  Federal and state laws prohibit any person from installing aftermarket add-on or modified parts prior to the sale of a new motor vehicle
    Part Type
    Engine: Superchargers
    Instruction Sheet
    Warranty Availability
    Not Available
    Package Dimensions
    24" x 30" x 18"
    Package Weight
    61 lb(s)
    UPC Code
    756122001516
    Country of Origin
    United States
