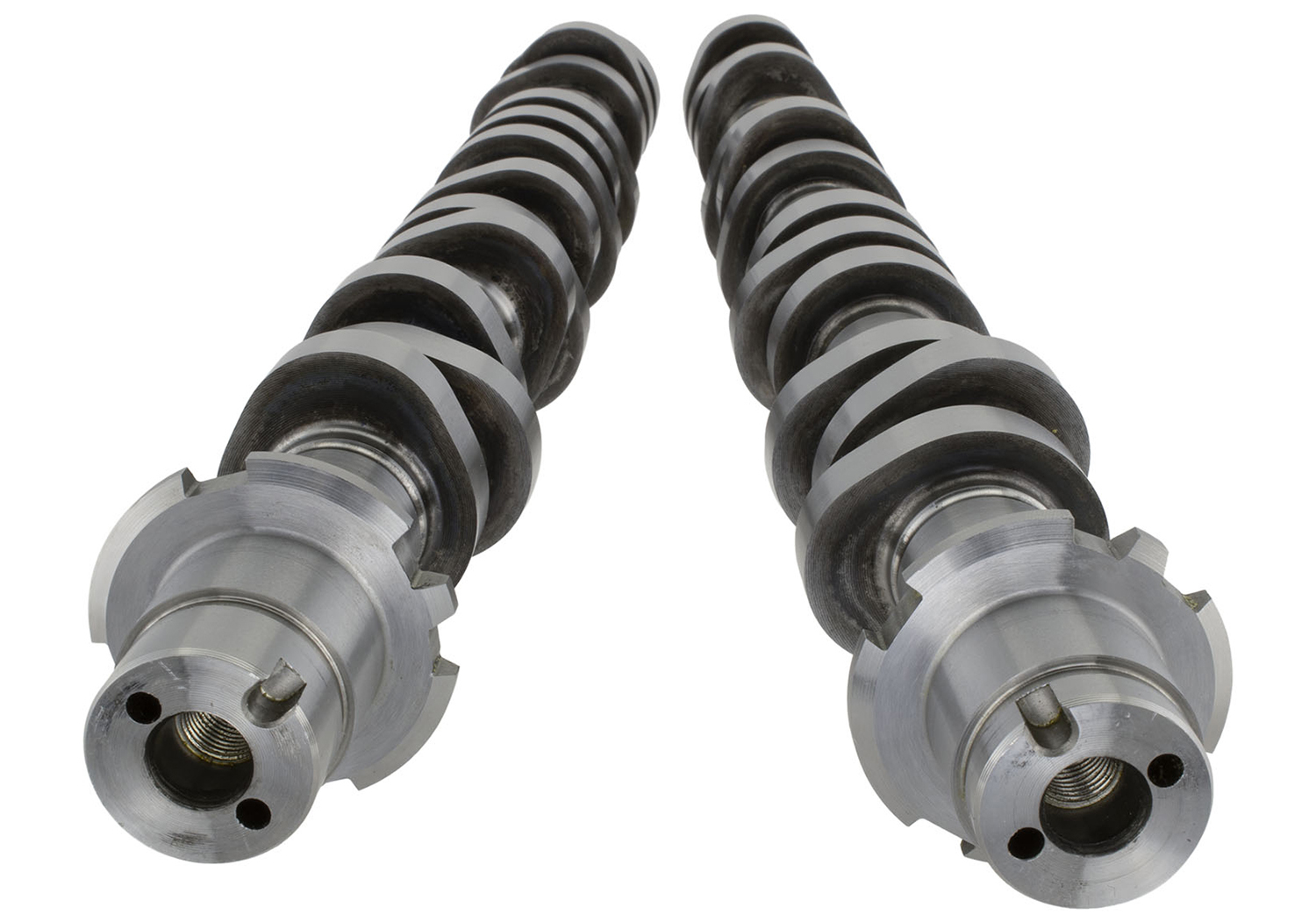

2005-2010 MUSTANG GT HIGH LIFT HOT ROD CAM SET
M-6550-3V
Retail
$959.00
Sold in Units of
Each (1)
Instruction Sheet
This part is in your Wish List
This part has been added to your Wish List
WARNING:
This part is designed and intended for competition use only or off-highway use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.
- Give any 3 valve 4.6L or 5.4L a "lopey" idle reminiscent of 1960's muscle cars!
- Engineered for naturally aspirated and supercharged applications
- Excellent upgrade for the 2005-2010 Mustang GT 4.6L 3-Valve engine
- Increases lift from the stock 11 mm/0.433" to 12 mm/0.472"
- Intake / exhaust duration of 221 / 240 degrees (@ 0.050" lift), lobe separation of 110 degrees.
- Compatible with production valve springs, followers and lash adjusters up to 6800 rpm
- In order to achieve significant power gains, long tube headers should be used.
- 4.6L High Flow Intake M-9424-463V and Throttle Body M-9926-3V recommended.
- Approximately 50 hp gain with the stock intake manifold and Ford Performance M-6049-N3VOA/M-6050-N3VPA CNC heads at 6500 rpm. These cylinder heads are for reference only, and no longer produced by Ford Performance
- Custom Calibration required! Calibration not included! Recommended WOT cam timing values included in instructions.
Part Type
Engine: Cam/Tappets/Pushrods
Instruction Sheet
Warranty Availability
Not Available
Package Dimensions
5.75" x 6" x 28"
Package Weight
18.8 lb(s)
UPC Code
756122103098
Country of Origin
United States
