2011-2014 MUSTANG 5.0L 90 MM THROTTLE BODY

2011-2014 MUSTANG 5.0L 90 MM THROTTLE BODY
M-9926-M5090
Retail
$770.00
Sold in Units of
Each (1)
Instruction Sheet
Not Available
Sign in to add to wish list
WARNING:
This part is designed and intended for competition use only or off-highway use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.

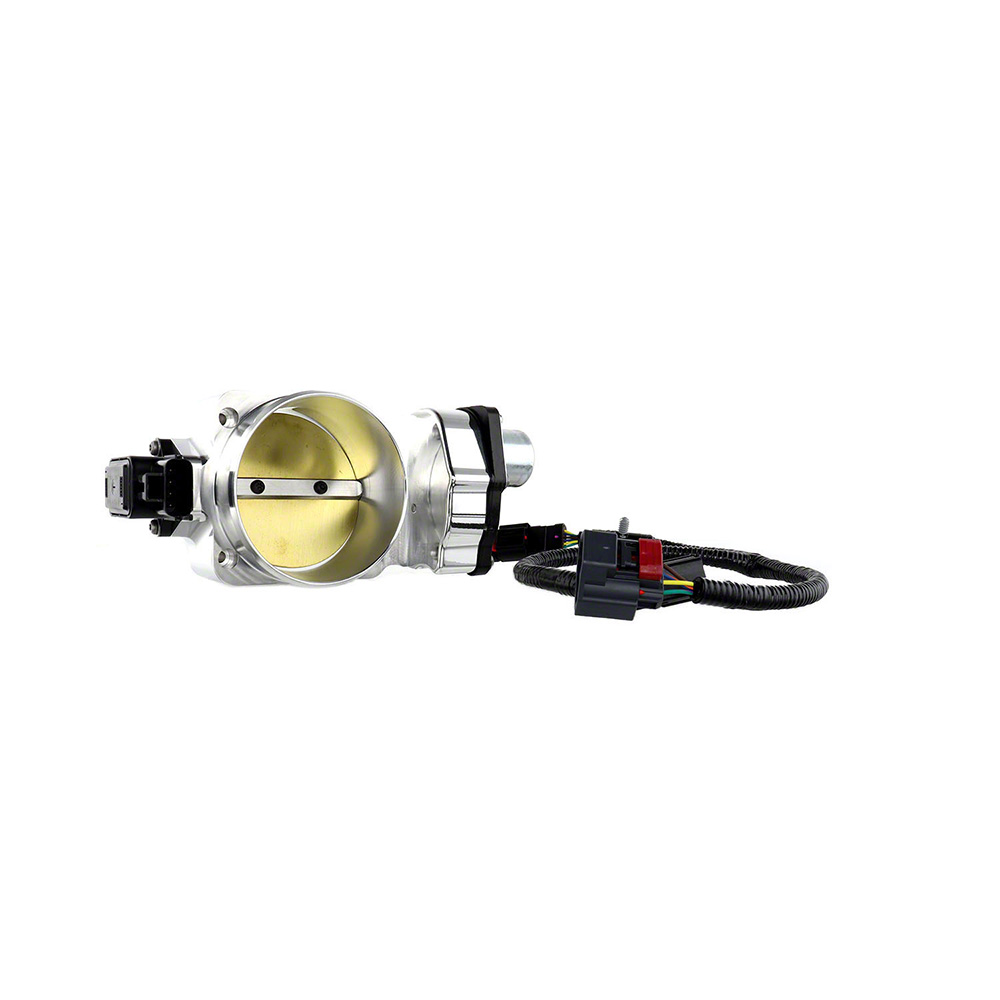

  • 90 MM Billet Aluminum Throttle Body
  • Fits 2011-2014 Mustang GT/ 2012-2013 Boss 302 with stock 80mm throttle body (NOT compatible with 2015 Mustang GT)
  • CFM Rating:1132cfm; with adapter 1101cfm (stock 80mm throttle body: 913cfm)*
  • 4" diameter leading edge larger than stock throttle body - requires use of 4" ID silicone hose adapter or reducer
  • 4" air inlet tube is recommended for maximum horsepower
  • When using factory 3.5" diameter air inlet tube the molded rubber throttle body hose must be removed
  • Ford Racing's performance electronic throttle bodies are for vehicles equipped with electronic throttle control (ETC)
  • Includes jumper harness
  • Does not include calibration, calibration required.

All Ford Racing ETC throttle bodies feature:

  • All factory sensors installed - no need to tear apart your original throttle body
  • Calibrated for idle air flow using the same procedure as production throttle bodies
  • Throttle body features CNC'd Ford Racing logo
  • Precision billet construction with tapered inlet for consistent high flow
  • Validation through hundreds of hours of dyno, racing, and street performance driving
  • Polished aluminum for great looks

Requires:

Adapter: M-9474-M50 for OEM Mustang GT 5.0L 4V TiVCT intake

Adapter: M-9474-M50B for Ford Racing Boss intake M-9424-M50BR

Notes:

Adapter M-9474-M50 rotates throttle body approximately 15 degrees counter clockwise

Engine cover M-9680-M50 covers throttle body on 5.0L 4V Ti-VCT intake

Boss intake M-9424-M50BR can be port matched to accept throttle body without adapter, requires custom gasket/RTV

*All cfm ratings are calibrated at 28-inches of water, measured on SuperFlow SF-1020 Flow Bench.


Part Type
Engine: Intake Related
Warranty Availability
Not Available
Package Dimensions
6" x 4.75" x 12"
Package Weight
4.1 lb(s)
UPC Code
756122129586
Country of Origin
United States
