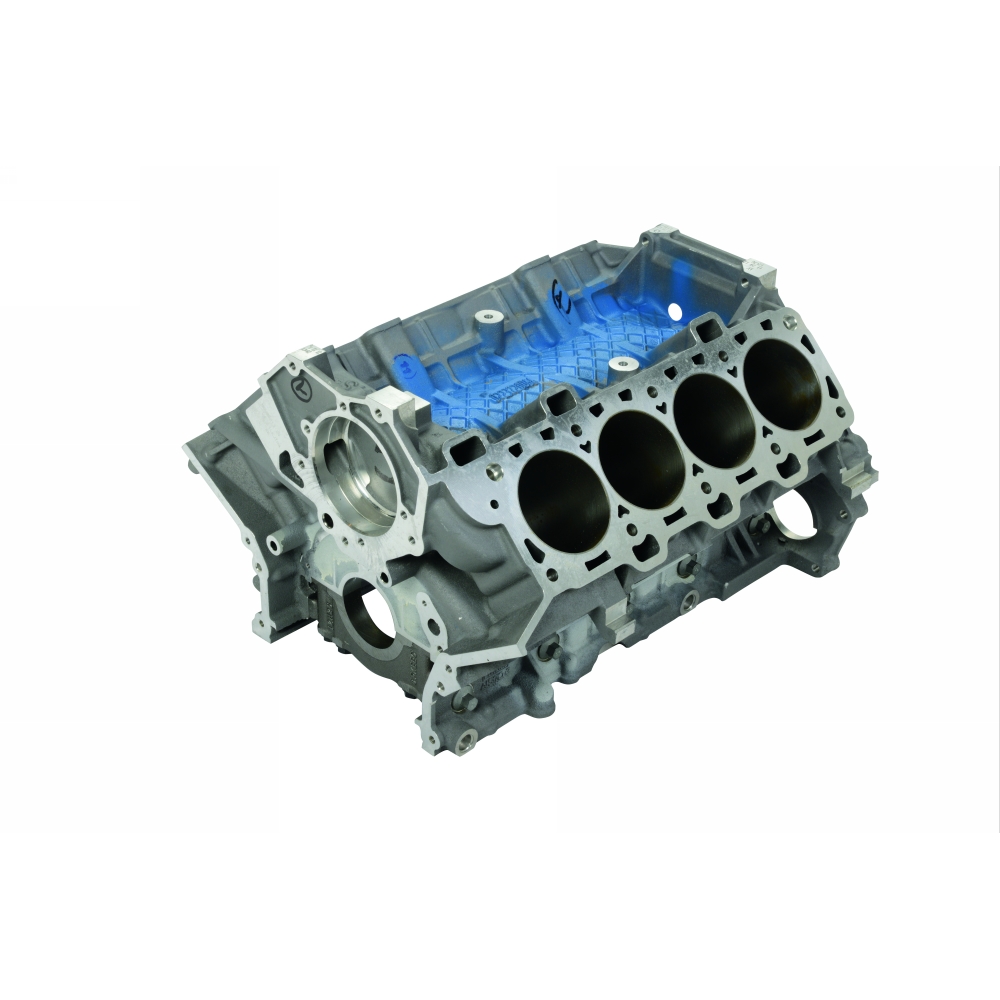

5.0L COYOTE ALUMINUM PERFORMANCE BLOCK

5.0L COYOTE ALUMINUM PERFORMANCE BLOCK
M-6010-M50R
Retail
$2,050.00
Sold in Units of
Each (1)
Instruction Sheet
Not Available
Sign in to add to wish list
ATTENTION:
This part is intended as a replacement part for use only in the application(s) identified in the product description. Installation of this part in a vehicle for which it is not intended may violate U.S. and Canadian laws and regulations related to motor vehicle emissions.
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.

  • Special casting of the 5.0L Coyote block with improvements to support higher horsepower engine builds
  • Water jacket below cylinder bore has been updated to add more material for strength
  • The intake side of the bore at the deck surface includes a cast in brace to improve strength of the cylinder wall and head gasket sealing
  • 1/4-inch drain plug provision on right side of block for coolant draining
  • Low pressure cast 319 aluminum
  • Pressed-in thin-wall iron liners
  • 92.2 mm bore size
  • Cross-bolted nodular iron main bearing caps
  • Uses 11mm cylinder head bolts
  • This block is compatible with Gen 1 (2011-14) and Gen 2 (2015-17) cylinder heads
  • Note that the head gasket must match the cylinder head
  • Must use Gen 1 oil filter adapter
  • Block has provisions for piston oil squirters
  • Includes plugs and dowels
Part Type
Engine: Engine Blocks
Warranty Availability
Not Available
Package Dimensions
21.5" x 14.25" x 22.5"
Package Weight
115 lb(s)
UPC Code
756122229200
Country of Origin
Mexico
