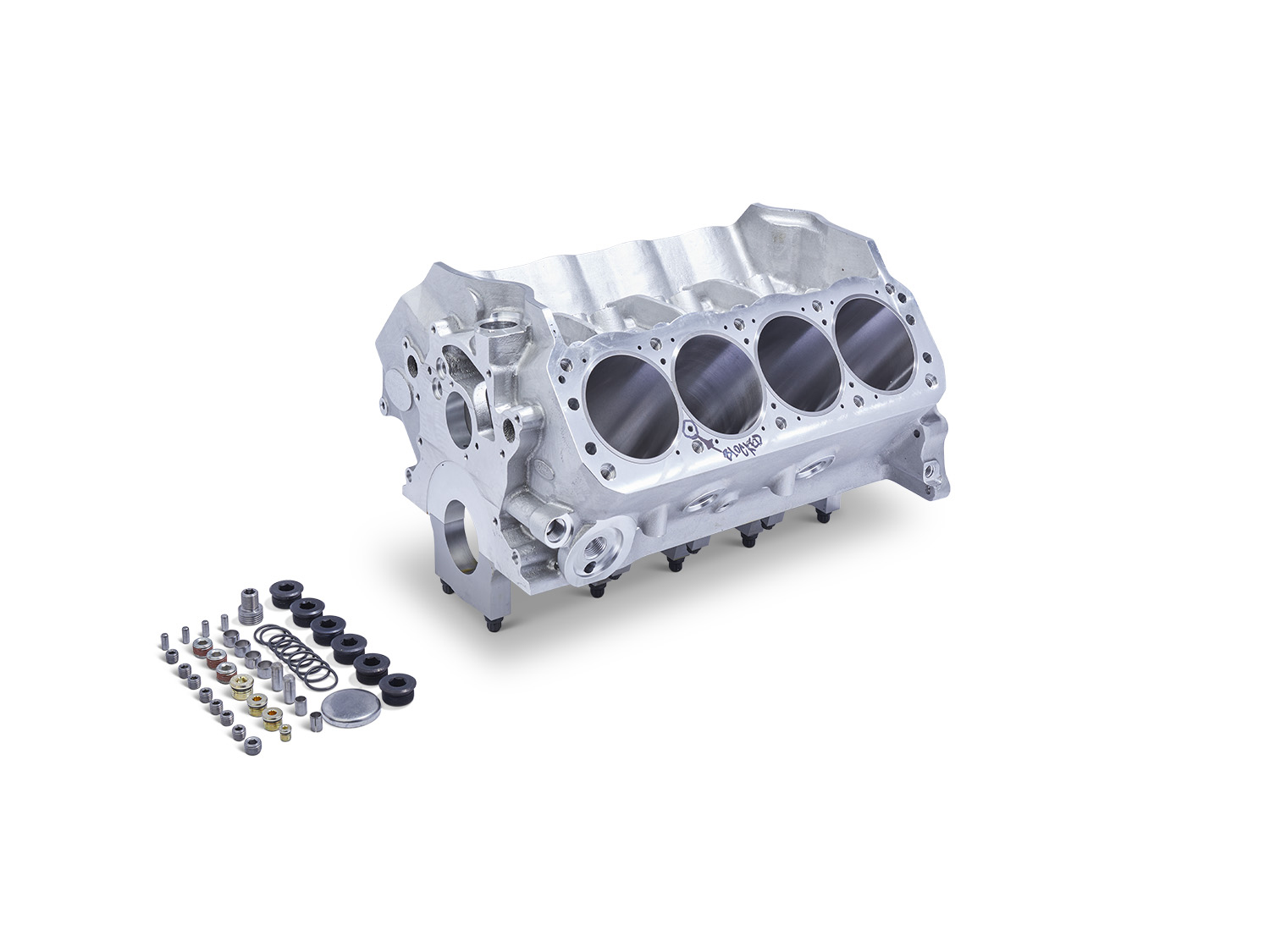

351 ALUMINUM BLOCK 9.5-INCH DECK

351 ALUMINUM BLOCK 9.5-INCH DECK
M-6010-Z351
Retail
$5,700.00
Sold in Units of
Each (1)
Instruction Sheet
Not Available
Sign in to add to wish list
WARNING:
This part is designed and intended for competition use only or off-highway use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.

  • High strength aluminum engine block, 356-T6 grade aluminum
  • Splayed 4-bolt, steel billet main caps on 2,3 and 4
  • 2-bolt main caps on 1 and 5
  • 4.110"-4.115" bore as delivered, cast iron sleeves 4.125"
  • 9.5-inch; deck height, accepts small block timing chain, timing chain cover and oil pump
  • 2.75-inch crankshaft (351C) main journal diameter. 2.9415-2.9425" diameter finished main bearing bore
  • Lifter bores finished .8753"-.8768"
  • 2.2032-inch - 2.2052-inch diameter cam bearing bores. Uses cam bearings, part number M-6261-J351
  • Maximum stroke 4.250-inch
  • Wet sump oiling system
  • Weight 118 lbs.
Part Type
Engine: Engine Blocks
Warranty Availability
Not Available
Package Dimensions
18.75" x 22" x 14.5"
Package Weight
146 lb(s)
UPC Code
756122688427
Country of Origin
United States
