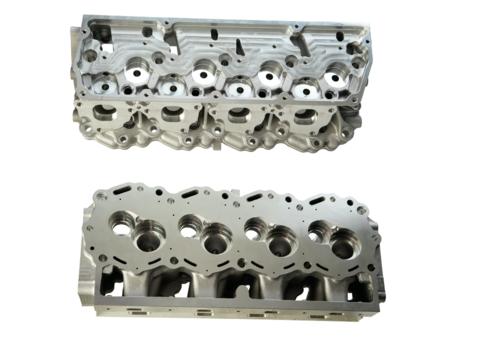

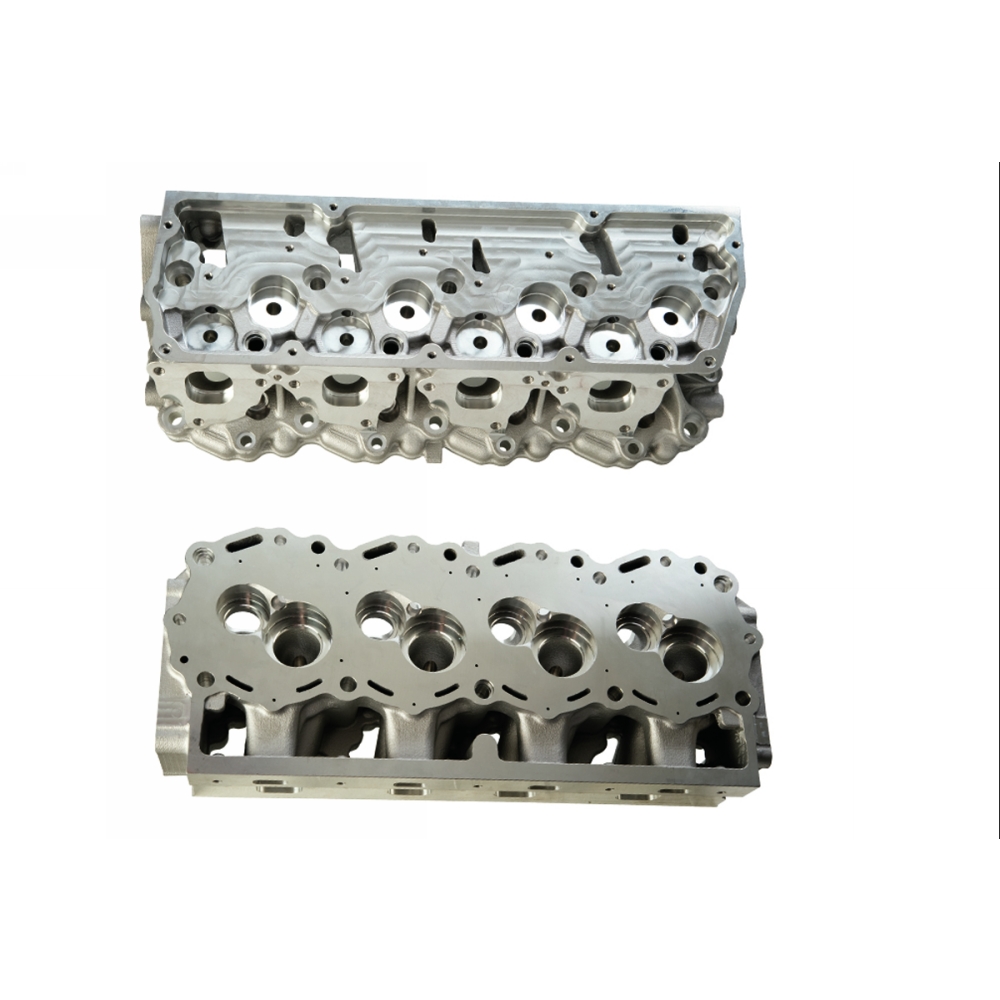

FR9 NASCAR CYLINDER HEAD
M-6049-E1
Retail
$1,885.00
Sold in Units of
Each (1)
Instruction Sheet
Not Available
This part is in your Wish List
This part has been added to your Wish List
WARNING:
This part is designed and intended for competition use only or off-highway use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.
- Fits NASCAR Engine Block M-6010-R500
-
Features:
- Lightweight A356-T6 aluminum casting
- Cross flow cooling
- Internal oil passages for valvetrain lubrication
- Splayed and canted intake valves
- Five bolt head bolt pattern
-
Specifications:
- Intake valve angle: 11.0� x 4.0�
- Exhaust valve angle: 7.5� x 0�
- Valve spacing: 1.94"
- Intake flange angle: 90�
- Exhaust flange angle: 60�
-
Required Components:
- Cylinder block: M-6010-R500
-
Water manifold: M-8C368-FR9
-
Recommended Use:
- Approved for the NASCAR Cup and Nationwide Series
- Circle track competition
-
Builder Notes:
- Heads are semi-finished requiring porting and combustion chamber machining
- Valve guides and seats are not included
- Water manifold, M-8C368-FR9 mounts directly to the cylinder heads
- The FR9 engine is unique and does not share any components with previous 351 Windsor or Cleveland based engines
- For FR9 engine related components, contact Roush Yates Performance Parts, phone 704-662-6982
Part Type
Engine: Cylinder Heads
Warranty Availability
Not Available
Package Dimensions
9" x 8" x 20.5"
Package Weight
32 lb(s)
UPC Code
756122111468
Country of Origin
Great Britain
