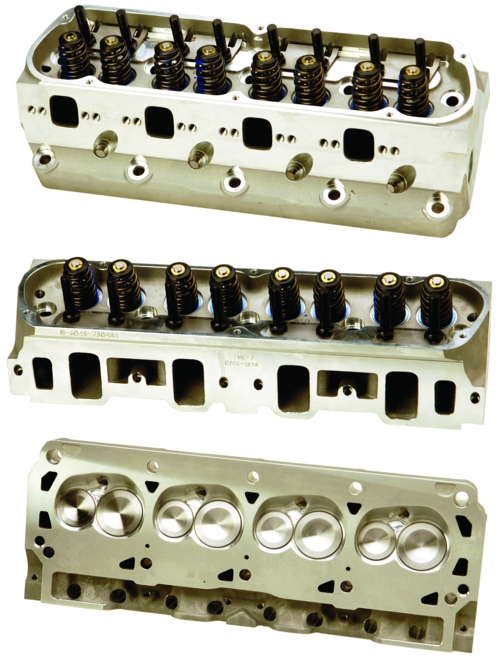

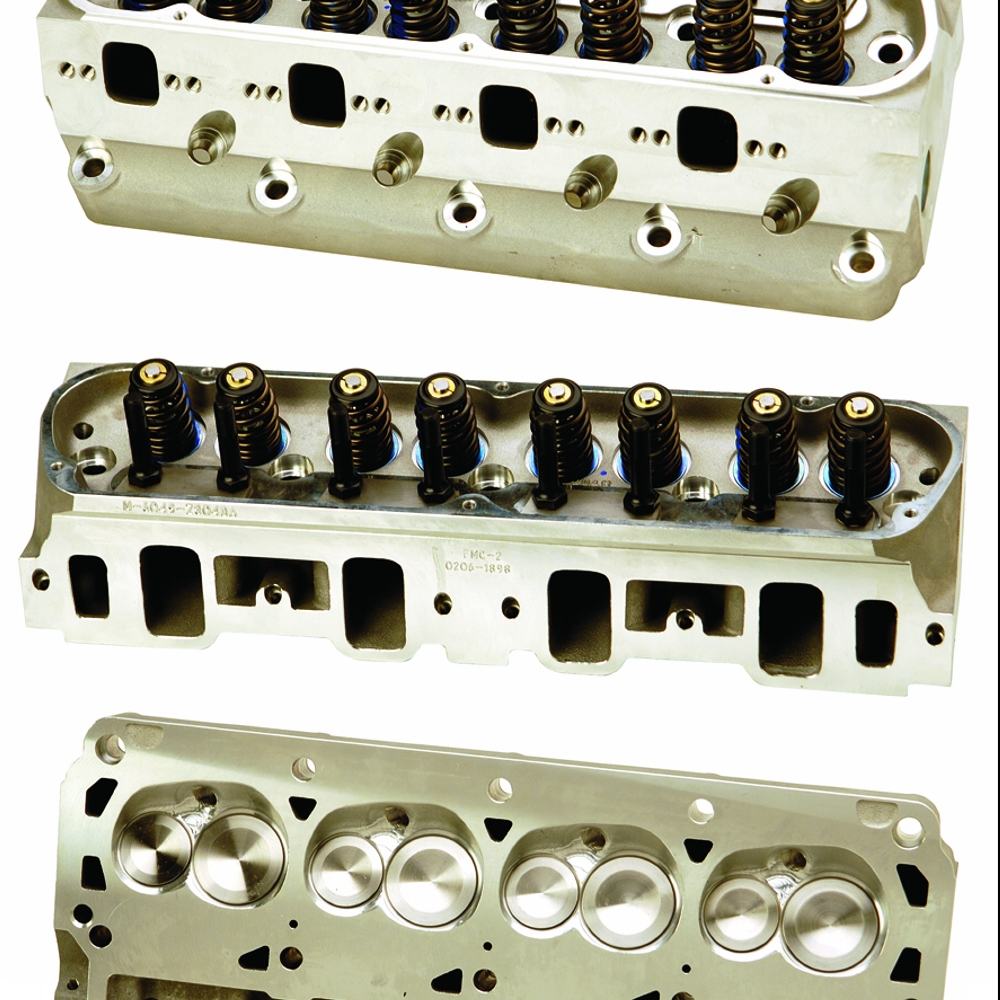

302/351W "Z-HEAD" ALUMINUM - ASSEMBLED 63CC WITH 7MM VALVE

302/351W "Z-HEAD" ALUMINUM - ASSEMBLED 63CC WITH 7MM VALVE
M-6049-Z304DA7
Retail
$1,525.00
Sold in Units of
Each (1)
Instruction Sheet
Not Available
Sign in to add to wish list
WARNING:
This part is designed and intended for competition use only or off-highway use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.

  • Fits 302/351 Windsor engines
  • Cast from prime A356 T6 aluminum
  • Heads are cast with high-flow ports
  • 20 degree inline valves
  • Premium stainless steel lightweight 7MM 2.02" intake M-6507-D3047 and 1.60" M-6505-D3047 exhaust valves
  • Uses PAC 1219X conical style valve springs with machined retainers and machined valve locks. Most hydraulic cams can be used with these springs.

    ·Valve spring closed pressure - 145 lbs. @1.800"

    ·Valve spring open pressure - 358 lbs. @ 1.175"

  • Includes laser cut guide plates M-6566-Z304D for use with 5/16" pushrods and 7/16" rocker studs
  • Steel alloy intake and exhaust valve seats
  • Manganese-bronze valve guides
  • 63cc CNC'd combustion chamber
  • Intake port volume as cast: 204cc
  • Exhaust port volume as cast: 85cc
  • Accepts both tapered seat and gasket style 14mm spark plugs (Motorcraft AGSP-32-PP, Autolite 3924, 3925)
  • Requires 1.65:1 or 1.5:1 ratio roller rocker arms with .150" offset intake pushrod cup (not included)
  • Raised exhaust port exit, custom headers may be required
  • Check piston to valve clearance including radial valve clearance before installing these cylinder heads on your engine
  • Uses Felpro® exhaust gasket part number 1487







Part Type
Engine: Cylinder Heads
Warranty Availability
Not Available
Package Dimensions
9.5" x 7.5" x 21.5"
Package Weight
31.8 lb(s)
UPC Code
756122233818
Country of Origin
United States
