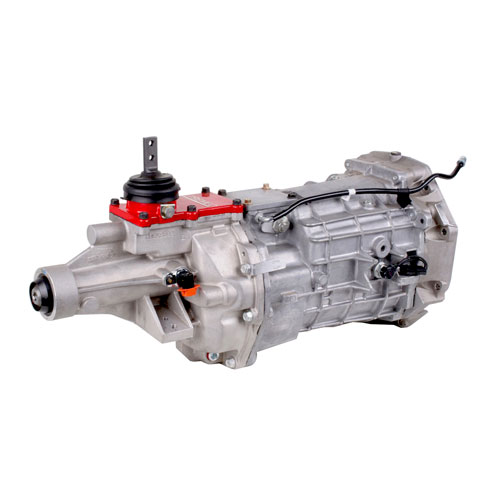

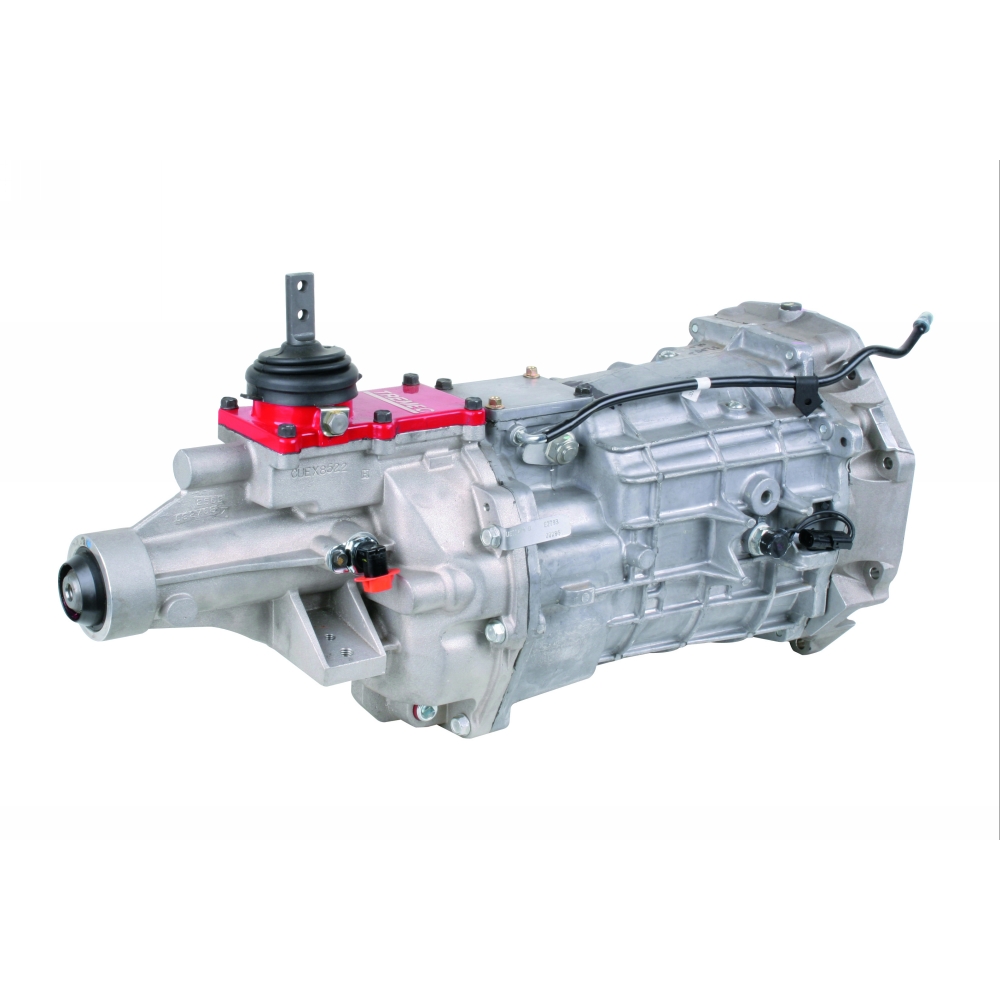

TREMEC 6-SPEED TRANSMISSION (2.66 1ST GEAR/26 SPLINE)

TREMEC 6-SPEED TRANSMISSION (2.66 1ST GEAR/26 SPLINE)
M-7003-M6266
Retail
$3,895.00
Sold in Units of
Each (1)
Instruction Sheet
Not Available
Sign in to add to wish list
WARNING:
This part is designed and intended for competition use only or off-highway use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.

  • Fits: SBF, 4.6L SOHC/DOHC and 5.0L Ti-VCT engines
  • Can be used in 1999-2004 Mustangs and Cobras
  • For SBF 302/351 use Quicktime bellhousing part # 8031, For modular 4.6L/5.0L/5.4L use Quicktime bellhousing part # 8080
  • May require shorter driveshaft, modified crossmember/trans mount and other minor modifications
  • 700 lbs./ft. torque capacity
  • Gear ratios: 1st 2.66, 2nd 1.78, 3rd 1.30, 4th 1.00, 5th 0.80, and 6th 0.63
  • Input shaft is 26 spline; output shaft is 31 spline
  • Provision for both mechanical and electronic speedometer
  • Mechanical speedometer drive gear has 7 teeth
  • Electronic speedometer rotor has 12 positions



Part Type
D-Line: Manual Trans
Warranty Availability
Not Available
Package Dimensions
18.25" x 9.75" x 36.5"
Package Weight
162 lb(s)
UPC Code
756122224403
Country of Origin
Mexico
