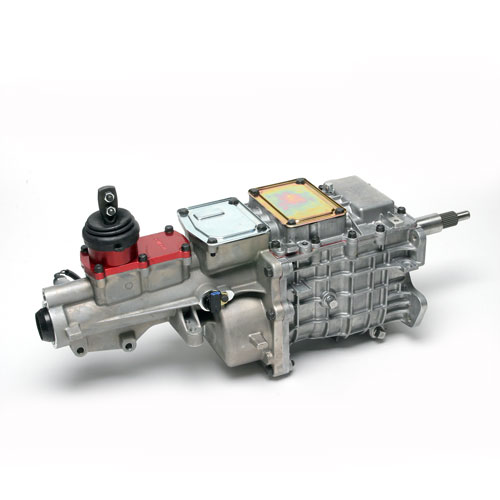

TREMEC 5-SPEED EXTRA HD TRANSMISSION (CLOSE RATIO 26 SPLINE)

TREMEC 5-SPEED EXTRA HD TRANSMISSION (CLOSE RATIO 26 SPLINE)
M-7003-R58H
Retail
$3,195.00
Sold in Units of
Each (1)
Instruction Sheet
Not Available
Sign in to add to wish list
WARNING:
This part is designed and intended for competition use only or off-highway use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.

  • Close ratio 1st through 4th
  • 600 lbs./ft. torque capacity
  • Gear ratios: 1st 2.87; 2nd 1.89; 3rd 1.28; 4th 1.00; 5th 0.64
  • Features improved shift forks, one-piece counter-shaft, gears made of 4615 steel which increases the torque capacity over that of the M-7003-R58 model
  • Input shaft is 26 spline; output shaft is 31 spline
  • Requires bellhousing M-6392-R58 to install in a 1979-1995 Mustang
  • For 1979-1993 Mustang applications, use M-5059-A crossmember (79-81 will require modification)
  • For 1994-1995 Mustang applications, modify vehicle crossmember, lengthen driveshaft .625'' and use clutch fork E6ZZ-7515-A
  • 31 spline driveshaft yoke required
  • Requires unique clutch disc M-7550-T302 (10.5") designed for use with 26 spline input
  • Can be used in 4.6L applications with bellhousing M-6392-M46 and Clutch Kit M-7560-T46 (11")
  • Tremec recommends Synchromesh® fluid
Part Type
D-Line: Manual Trans
Warranty Availability
Not Available
Package Dimensions
12.75" x 17.5" x 34.25"
Package Weight
130 lb(s)
UPC Code
756122076187
Country of Origin
Mexico
